Ply-wise strain energy

This example shows how to implement a custom result using strain energy \(U=\frac{1}{2} \cdot V \cdot \sigma \cdot \epsilon\). The first part computes the total elemental strain energy. The second part performs the same evaluation for a specific ply.

Note

This custom implementation targets layered shell elements and has been tested only with 4-node shell elements. A few simplifications may lead to differences when compared with the native DPF implementation or the Mechanical application. The implementation ignores out-of-plane shear forces and assumes that the area weighting factor is the same for each integration point. For irregular elements, compute the Jacobian determinant for each integration point to get the exact area weighting factor.

Note

When using a Workbench project, use the get_composite_files_from_workbench_result_folder() method to obtain the input files.

For additional examples that show how to obtain ply-wise material properties, strains, and stresses, see Material properties and custom failure criterion, Lay-up properties, and Filter result data by different criteria,

Script

Import dependencies.

import ansys.dpf.core as dpf
import numpy as np

from ansys.dpf.composites.composite_model import CompositeModel, LayerProperty
from ansys.dpf.composites.constants import Spot
from ansys.dpf.composites.example_helper import get_continuous_fiber_example_files
from ansys.dpf.composites.layup_info import (
    AnalysisPlyInfoProvider,
    ElementInfo,
    get_all_analysis_ply_names,
)
from ansys.dpf.composites.select_indices import get_selected_indices, get_spots_from_element_info
from ansys.dpf.composites.server_helpers import connect_to_or_start_server

Start a server and get the example files. This will copy the example files into the current working directory.

server = connect_to_or_start_server()
composite_files_on_server = get_continuous_fiber_example_files(server, "shell")

Set up model

Set up the composite model.

composite_model = CompositeModel(composite_files_on_server, server)

Get inputs

The strains, stresses, and volumes (area * thickness) are needed for the strain energy computation. These quantities are provided by the DPF composites model and the DPF core model. Note: The elements_volume operator of DPF returns the area instead of the volume for layered shells.

stress_operator = composite_model.core_model.results.stress()
stress_operator.inputs.bool_rotate_to_global(False)
stress_fc = stress_operator.get_output(pin=0, output_type=dpf.types.fields_container)
stress_field = stress_fc.get_field_by_time_id(1)

strain_operator = composite_model.core_model.results.elastic_strain()
strain_operator.inputs.bool_rotate_to_global(False)
strain_fc = strain_operator.get_output(pin=0, output_type=dpf.types.fields_container)
strain_field = strain_fc.get_field_by_time_id(1)

area_operator = dpf.operators.geo.elements_volume(
    mesh=composite_model.get_mesh(),
)
area_field = area_operator.outputs.field()

Weighting factors

Computes the through-the-thickness weighting factor of the integration points. Note: The Mechanical APDL application uses the Simpson integration rule for layered shells. The through-the-thickness weighting factors are 1/6 for the integration points at the bottom and top, and 2/3 for the integration points in the middle of the layer.

def weighting_factor(my_element_info: ElementInfo, my_spot: Spot) -> float:

    if not my_element_info.is_shell:
        raise RuntimeError("Weighting factor is only implemented for layered shell elements.")

    if my_element_info.n_spots == 1:
        return 1.0
    if my_spot == Spot.MIDDLE:
        return 2.0 / 3.0
    else:
        return 1.0 / 6.0

Strain energy per layer

Returns the strain energy of a single layer.

def layer_wise_strain_energy(
    my_element_info: ElementInfo,
    my_layer_index: int,
    my_element_strains: np.ndarray,
    my_element_stresses: np.ndarray,
    my_thickness: float,
    my_area: float,
) -> float:
    my_strain_energy_density = 0.0
    for spot in get_spots_from_element_info(my_element_info):
        selected_indices = get_selected_indices(
            my_element_info, layers=[my_layer_index], spots=[spot]
        )
        spot_strain_values = my_element_strains[selected_indices]
        spot_stress_values = my_element_stresses[selected_indices]
        wf = weighting_factor(my_element_info, spot)
        for strain_values, stress_values in zip(spot_strain_values, spot_stress_values):
            my_strain_energy_density += np.dot(strain_values, stress_values) * wf

    ply_strain_energy = (
        my_strain_energy_density
        / element_info.number_of_nodes_per_spot_plane
        * my_thickness
        * my_area
        / 2.0
    )
    return ply_strain_energy

Compute the total elemental strain energy

Iterates over each element and layer and builds the sum of the strain energy over the integration points.

total_energy_field = dpf.field.Field(location=dpf.locations.elemental, nature=dpf.natures.scalar)
with total_energy_field.as_local_field() as local_result_field:
    # Iterate over all elements of the mesh.
    # The model has only layered shell elements, so no filtering is needed.
    total_strain_energy = 0
    for element_id in composite_model.get_mesh().elements.scoping.ids:
        # Get elemental data.
        element_info = composite_model.get_element_info(element_id)
        if element_info is None:
            continue
        thicknesses = composite_model.get_property_for_all_layers(
            LayerProperty.THICKNESSES, element_id
        )
        area = area_field.get_entity_data_by_id(element_id)[0]
        stress_data = stress_field.get_entity_data_by_id(element_id)
        strain_data = strain_field.get_entity_data_by_id(element_id)

        # Iterate over the plies, filter data, and compute the strain
        # energy per element.
        elemental_strain_energy = 0
        for layer_index in range(element_info.n_layers):
            elemental_strain_energy += layer_wise_strain_energy(
                element_info,
                layer_index,
                strain_data,
                stress_data,
                thicknesses[layer_index],
                area,
            )
        total_strain_energy += elemental_strain_energy
        local_result_field.append([elemental_strain_energy], element_id)

composite_model.get_mesh().plot(total_energy_field)
print(f"Total strain energy: {total_strain_energy} [mJ]")

Static Scene

Interactive Scene

Total strain energy: 4.766827837483155 [mJ]

Compute the ply-wise strain energy

Select a ply by name and initialize the AnalysisPlyInfoProvider, which provides all information of the selected ply. The strain energy computation is the same as above, just for a single ply.

all_ply_names = get_all_analysis_ply_names(composite_model.get_mesh())
all_ply_names

ply_name = "P1L1__woven_45"
analysis_ply_info_provider = AnalysisPlyInfoProvider(mesh=composite_model.get_mesh(), name=ply_name)

ply_energy_field = dpf.field.Field(location=dpf.locations.elemental, nature=dpf.natures.scalar)
with ply_energy_field.as_local_field() as local_result_field:
    # Loop over all elements of the analysis ply.
    for element_id in analysis_ply_info_provider.property_field.scoping.ids:
        # Get elemental data.
        element_info = composite_model.get_element_info(element_id)
        assert element_info is not None
        layer_index = analysis_ply_info_provider.get_layer_index_by_element_id(element_id)

        elemental_strain_energy = layer_wise_strain_energy(
            element_info,
            layer_index,
            strain_field.get_entity_data_by_id(element_id),
            stress_field.get_entity_data_by_id(element_id),
            composite_model.get_property_for_all_layers(LayerProperty.THICKNESSES, element_id)[
                layer_index
            ],
            area_field.get_entity_data_by_id(element_id)[0],
        )
        local_result_field.append([elemental_strain_energy], element_id)

composite_model.get_mesh().plot(ply_energy_field)

Static Scene

Interactive Scene

(None, <pyvista.plotting.plotter.Plotter object at 0x7fb8bc9d25d0>)

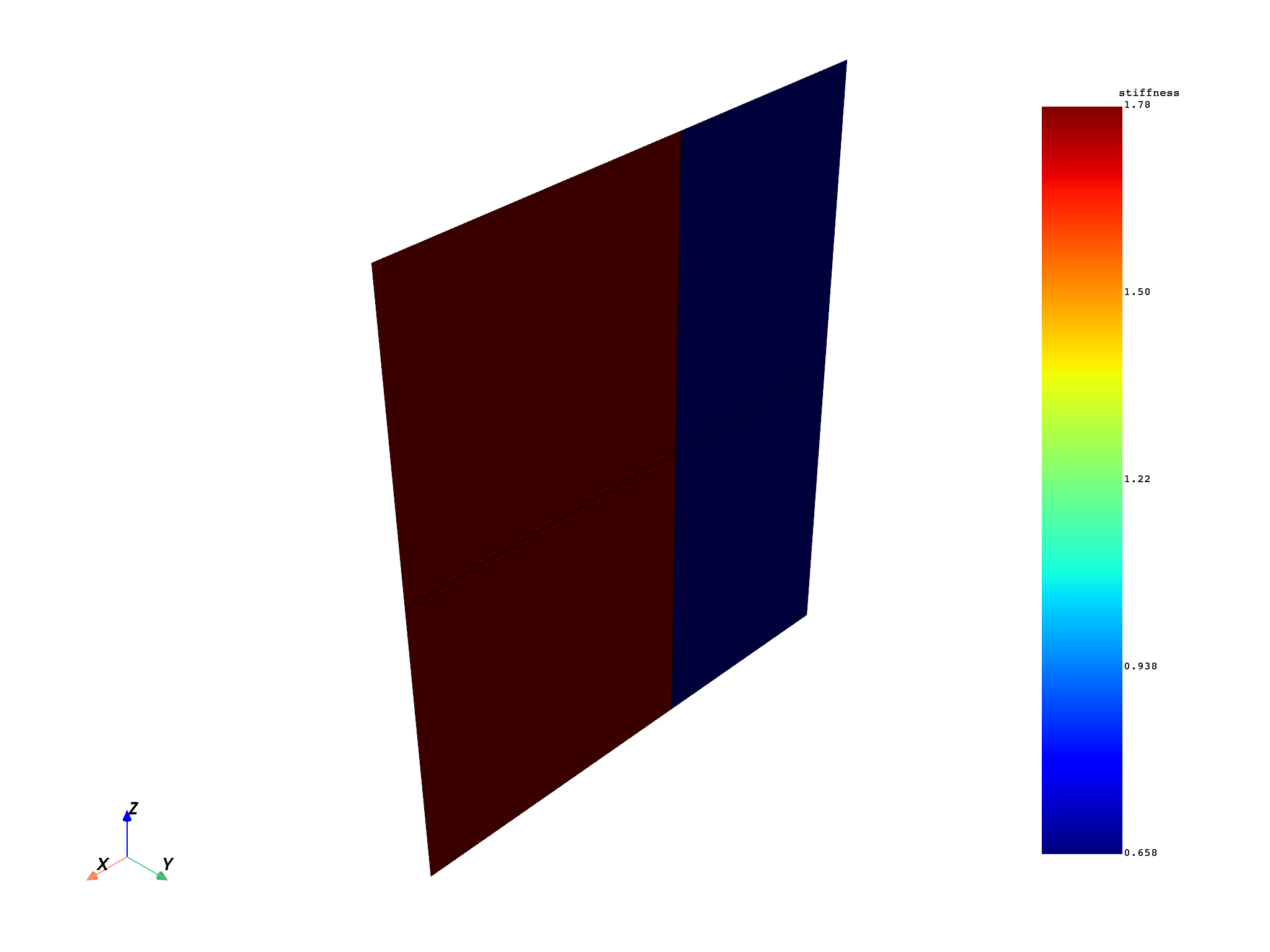

Native DPF operator for strain energy

Use the native DPF operator for strain energy to compare the results with the custom implementation above. The results differ due to the assumptions described above.

op = dpf.operators.result.stiffness_matrix_energy()  # operator instantiation
op.inputs.data_sources(composite_model.data_sources.result_files)
dpf_strain_energy = op.outputs.fields_container()
dpf_strain_energy[0].plot()

Static Scene

Interactive Scene

(None, <pyvista.plotting.plotter.Plotter object at 0x7fb8bc9d1950>)
